Attach Multiple Vending Units Together

Combine Units

Scale your vending solution in a smart way by adding additional units when and how you want with a master-slave setup. The “MSK” is Smart Vending Machine with full remote access to the User Interface, Sales Report, Peripherals, Inventory Amount and Status of the machine.


The Open 24

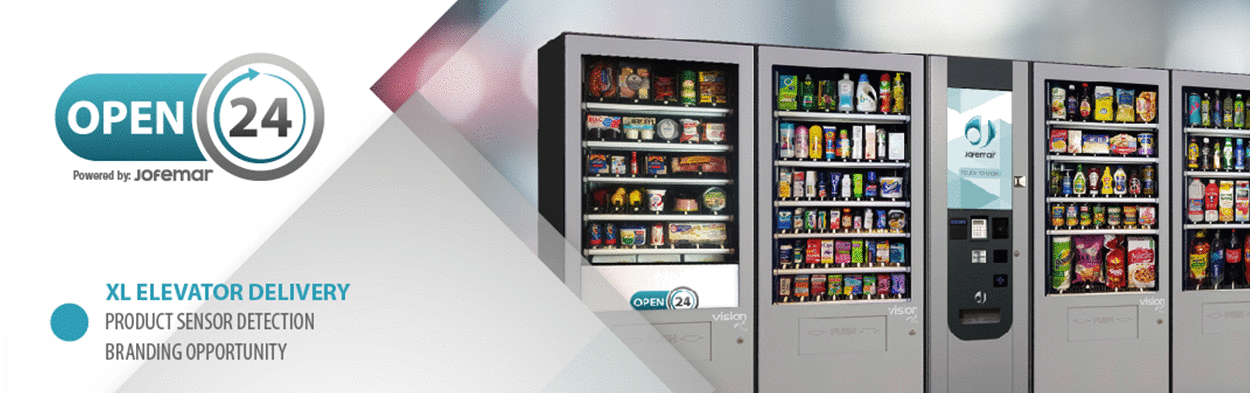

This is an example of how to create an effective mini-market (automated retail store) using a central payment center. Complete with a 24” touch-screen, the central “MSK” can control up to 4 “satellite” (often called “slave”) units. Pictured above, you can see how this allows for configuring each satellite unit uniquely. Different combinations of refrigerated and non-refrigerated units highlight this idea.



In More Detail


Control Unit

The modular system consists of a Control Unit, and the vending unit used for inventory and vending.

Three different control unit options for a modular vending machine system

Three different control unit options for a modular vending machine system

Each of these can support up to 4 satellite units. They range from a screenless interface on the left, to a small 10” touch in the middle, and a 27” unit on the right, with a powerful user interface and presence.


Satellite Units

These units provide the vending functionality. These can be combined with any of the Control Units shown above.

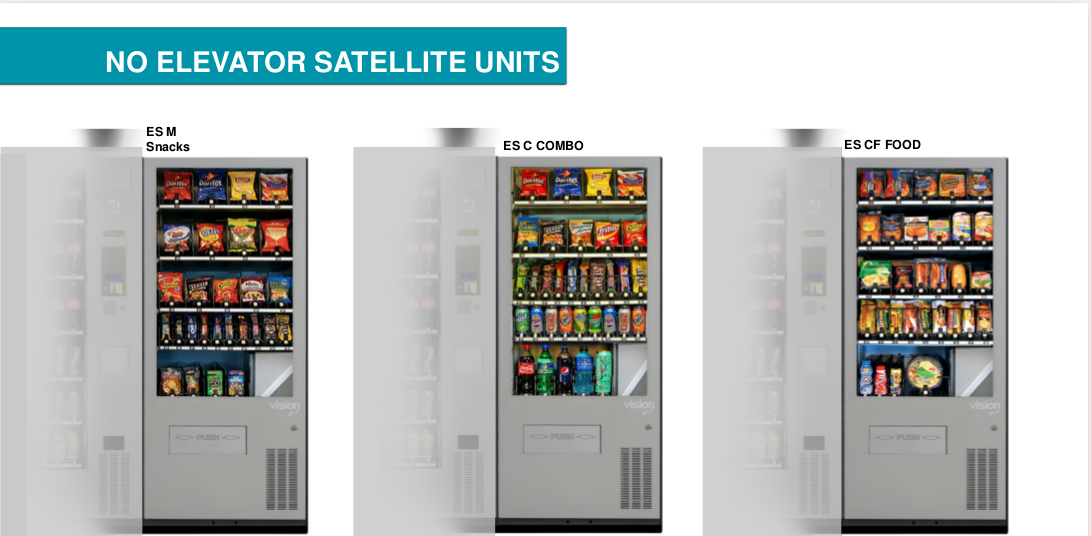

No-elevator satellite units, showing options with and without refrigeration

No-elevator satellite units, showing options with and without refrigeration

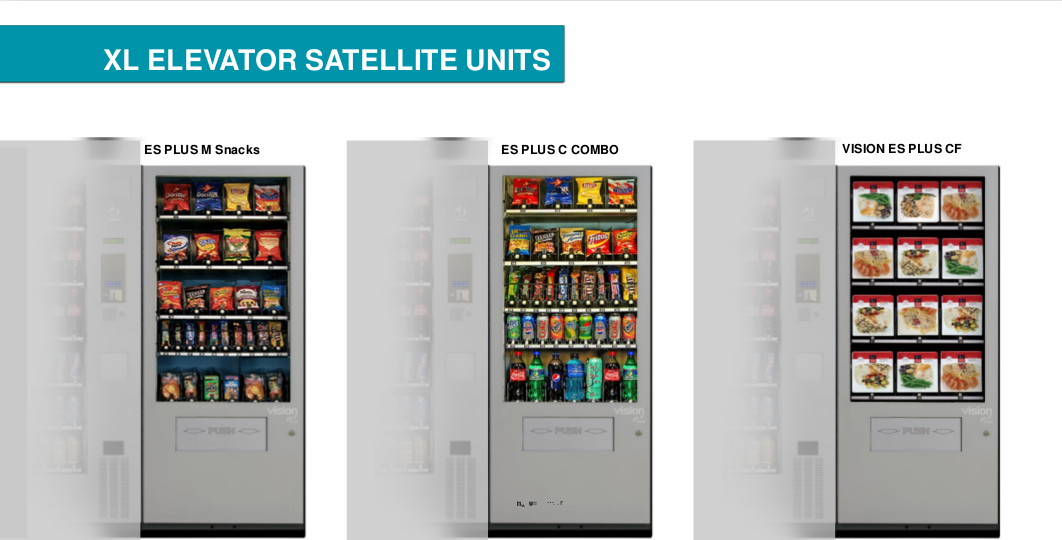

Satellite Units using elevators, which are appropriate for more fragile products

Satellite Units using elevators, which are appropriate for more fragile products

Contact Us to see what kind of setup makes the most sense for you. We’re great at identifying the most cost effective solution for your business.
