Vending Design Works

Standard

Traditional Vending Units



Overview

These standard machines can be purchased as used or brand new




Wide-Gem

  • Width: 39”

  • Height: 72”

  • Depth: 35 1/2 inches

  • Snack helix openings: 1 1/4 to 3 1/4″

  • Candy helix openings: 3/4″ to 3 7/8″

Features

  • Sensit® patented guaranteed delivery system

  • 3-year warranty for board and refrigeration

  • 1-yr warranty all other parts

  • Most parts are interchangeable with most other AMS vendors

  • Options available

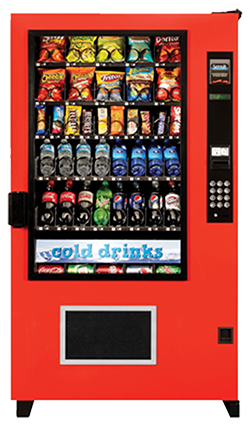

The Outsider

  • Width: 39 inches

  • Height: 72”

  • Depth: 35”

  • Typical snack configuration holds 617 units

  • Typical snack & beverage configuration holds 370 units combined

Features

  • Vandal-resistant

  • Triple-pane heated glass protected by a layer of durable polyurethane

  • Heavy-gauge steel vandal panels for greater protection

  • Featuring EnergySensit® for programmable energy savings

  • Available in bright red color or our standard black

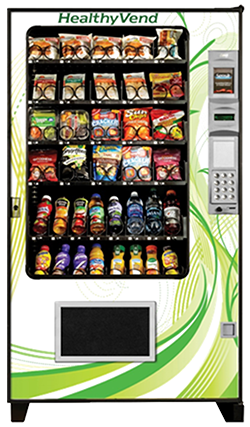

HealthyVend

  • Width: 35” or 39”

  • Height: 72”

  • Depth: 35”

  • Snack helix openings: 1 1/4″ to 3 1/4″

  • Candy helix openings: 3/4″ to 3 7/8″

Features

  • Sensit® patented guaranteed delivery system

  • 3-year warranty for electronics and refrigeration

  • 1-yr warranty all other parts

  • Motor coupling and home positioning

  • Polyurethane foam

  • Most parts are interchangeable with most other AMS vendors.

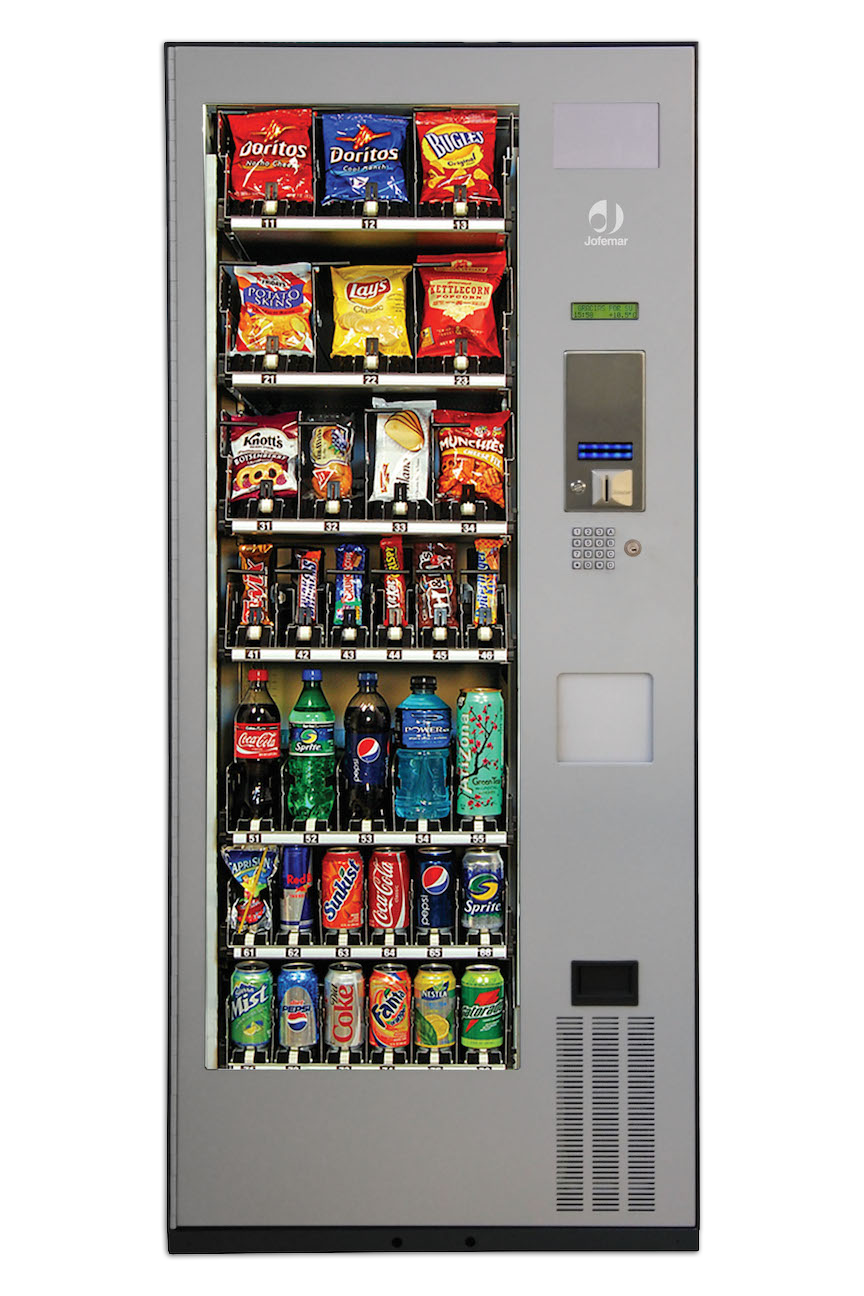

MultisellerPlus

Features:

· Energy saving feature which turns off display lights during non-operational periods.
· Programmable elevator movements to stimulate public interest and sales. Branding the elevator.
· Continuous self testing & diagnosis Failure incident report.
· Modular cabinet built with corrosion resistant & rust proofing treatment.
· Complete accounting data storage and retrieval via DEX/UCS port is RS232 C plug.
· LCD display of programming messages, product price and machine status.
· Greater capacity per selection for most items.
· First in first out (FIFO) delivery dispensing.
· Jofemar´s Smart Vend Guaranteed product delivery system.
· Up to 56 products selections depending of size and shape.
· Front security lock with 3 locking points.
· Injected foam cabinet.

Specifications

Dimensions 72"H x 31 1/2"W x 37"D Weight 640 lbs Glass Size 57 1/2H x 18,5"W Electrical 110-115 VAC / 2 amps Refrigeration Optional Temperature Ambient MDB Communication Protocol


Multiseller

  • Dimensions: 72"H x 31 1/2"W x 37"D

  • Weight 590 lbs Glass Size 43 1/2H x 21"W

  • Electrical 110-115 VAC / 2 amps

  • Refrigeration Optional

  • Temperature Ambient

    Features:

    · Energy saving feature which turns off display lights during non-operational periods.
    · Programmable health and safety controls, as well as expiration date per selection.
    · Continuous self testing & diagnosis Failure incident report.
    · Modular cabinet built with corrosion resistant & rust proofing treatment.
    · Complete accounting data storage and retrieval via DEX/UCS port is RS232 C plug.
    · Greater capacity per selection for most items.
    · Jofemar´s Smart Vend Guaranteed product delivery system.
    · Low power consumption.
    · Front security lock with 3 locking points.
    · Unique Jofemar´s conveyor delivery system. Eliminates the spirals & increase capacity.
